CPLD MAX? 系列 600 门 32 宏电池 0.8um 技术 5V 28 引脚窗口 CDIP

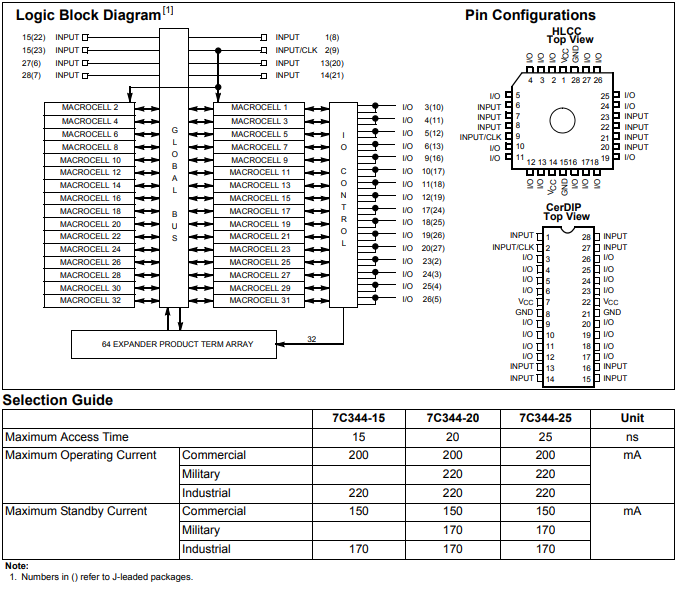

CY7C344具有28引脚，300 mil DIP或加窗j引脚陶瓷芯片载体(HLCC)，代表了该尺寸中密度最大的EPLD。8个专用输入和16个双向I/O引脚通信到一个逻辑阵列块。在CY7C344 LAB中有32个宏细胞和64个膨胀产物项。当使用I/O宏单元格作为输入时，使用两个扩展器来创建输入路径。即使所有的I/O引脚都由宏单元寄存器驱动，仍然有16个“埋藏”寄存器可用。所有输入、宏单元和I/O引脚在LAB内相互连接。
CY7C344的速度和密度使其成为所有类型应用的自然选择。仅使用这一个器件，设计人员就可以实现复杂的状态机、注册逻辑和组合“粘合”逻辑，而无需使用多个芯片。这种架构灵活性允许CY7C344取代多芯片TTL解决方案，无论它们是同步的、异步的、组合的还是三者兼而有之。
特性
?高性能，高密度替代TTL，
74HC，以及自定义逻辑
?32个宏细胞，64个扩增产物项在一个LAB中
?8个专用输入，16个I/O引脚
?0.8微米双金属CMOS EPROM技术
?28引脚，300 mil DIP, cerDIP或28引脚HLCC, PLCC封装
Product Technical Specifications
| EU RoHS | Not Compliant |
| ECCN (US) | 3A001.a.2.c |
| Part Status | Obsolete |
| HTS | 8542.39.00.01 |
| Automotive | No |
| PPAP | No |
| Family Name | MAX? |
| Program Memory Type | EPROM |
| Number of Logic Blocks/Elements | 1 |
| Number of Macro Cells | 32 |
| Process Technology | 0.8um |
| Device System Gates | 600 |
| Data Gate | No |
| Maximum Number of User I/Os | 16 |
| Number of Flip Flops | 32 |
| In-System Programmability | No |
| Number of Inter Dielectric Layers | 2 |
| Programmability | Yes |
| Reprogrammability Support | No |
| Maximum Internal Frequency (MHz) | 62.5 |
| Maximum Clock to Output Delay (ns) | 15 |
| Maximum Propagation Delay Time (ns) | 25 |
| Speed Grade | 25 |
| Individual Output Enable Control | No |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Operating Current (mA) | 220 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 125 |
| Supplier Temperature Grade | Military |
| Tradename | MAX |
| Mounting | Through Hole |
| Package Height | 3.56(Max) |
| Package Width | 7.87(Max) |
| Package Length | 37.72(Max) |
| PCB changed | 28 |
| Standard Package Name | DIP |
| Supplier Package | Windowed CDIP |
| Pin Count | 28 |
| Lead Shape | Through Hole |
