★ ★ ★ 针对TI电源�？椋颐峭萍鍪褂肔eadway 非隔离DC-DC电源模块进行原位替代，Leadway电源�？樵谑淙氲缪埂⑹涑龅缪�、输出电流、尺寸、温度范围、效率和封装等方面均与Murata村田电源�？橄嗥ヅ�。具体参数如下：
| Leadway型号 | 可替代TI型号 | 输入电压范围 | 输出电压范围 | 输出电流 | 工作温度范围 | 效率 | 封装 | 尺寸 |
| (L*W*H) | ||||||||
| LWH03000WAD | PTH03000WAD | 3~3.6V | 0.9 ~ 2.5V | 6A | -40℃ ~ 171℃ | 93% | 5-DIP | 19.1mm x 12.7mm x 8.6mm |

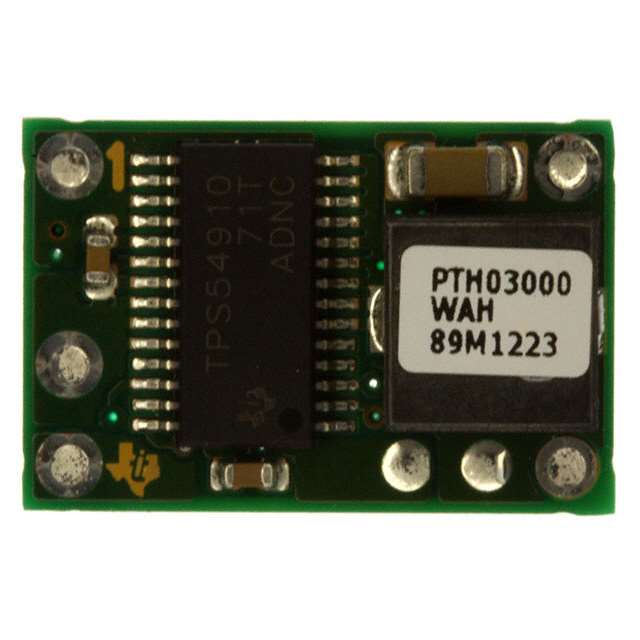

| LWH03000WAH | PTH03000WAH | 3~3.6V | 0.9 ~ 2.5V | 6A | -40℃ ~ 118℃ | 93% | 5-DIP | 19.1mm x 12.7mm x 8.6mm |
| LWH03010WAD | PTH03010WAD | 2.95~3.65V | 0.8 ~ 2.5V | 15A | -40℃ ~ 139℃ | 93% | 10-DIP | 34.8mm x 15.7mm x 8.9mm |
| LWH03010WAH | PTH03010WAH | 2.95~3.65V | 0.8 ~ 2.5V | 15A | -40℃ ~ 138℃ | 93% | 10-DIP | 34.8mm x 15.7mm x 8.9mm |
| LWH03010YAD | PTH03010YAD | 2.95~3.65V | 0.55 ~ 1.8V | 15A | -40℃ ~ 233℃ | 0.88 | 10-DIP | 34.8mm x 15.7mm x 8.9mm |
| LWH03010YAH | PTH03010YAH | 2.95~3.65V | 0.55 ~ 1.8V | 15A | -40℃ ~ 133℃ | 0.88 | 10-DIP | 34.8mm x 15.7mm x 8.9mm |
| LWH03050WAD | PTH03050WAD | 2.95~3.65V | 0.8 ~ 2.5V | 6A | -40℃ ~ 224℃ | 94% | 6-DIP | 22.1mm x 12.7mm x 8.6mm |
| LWH03050WAH | PTH03050WAH | 2.95~3.65V | 0.8 ~ 2.5V | 6A | -40℃ ~ 104℃ | 94% | 6-DIP | 22.1mm x 12.7mm x 8.6mm |
| LWH03050YAH | PTH03050YAH | 2.95~3.65V | 0.55 ~ 1.8V | 6A | -40℃ ~ 225℃ | 0.88 | 6-DIP | 22.1mm x 12.7mm x 8.6mm |
| LWH03050YBH | PTH03050YBH | 2.95~3.65V | 0.55 ~ 1.8V | 6A | -40℃ ~ 129℃ | 0.88 | 6-DIP | 22.1mm x 12.6mm x 8.5mm |
